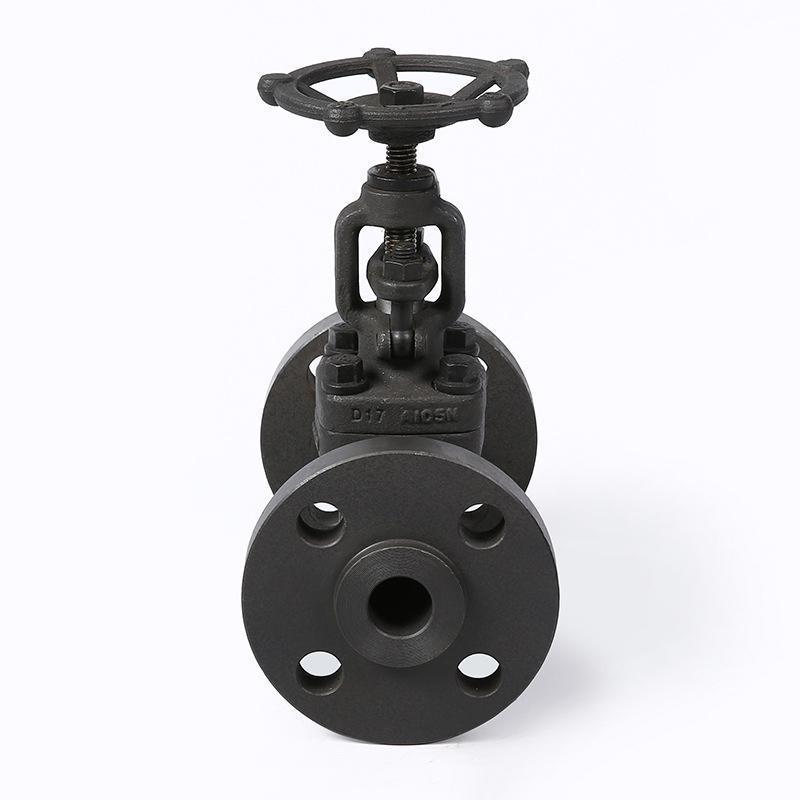

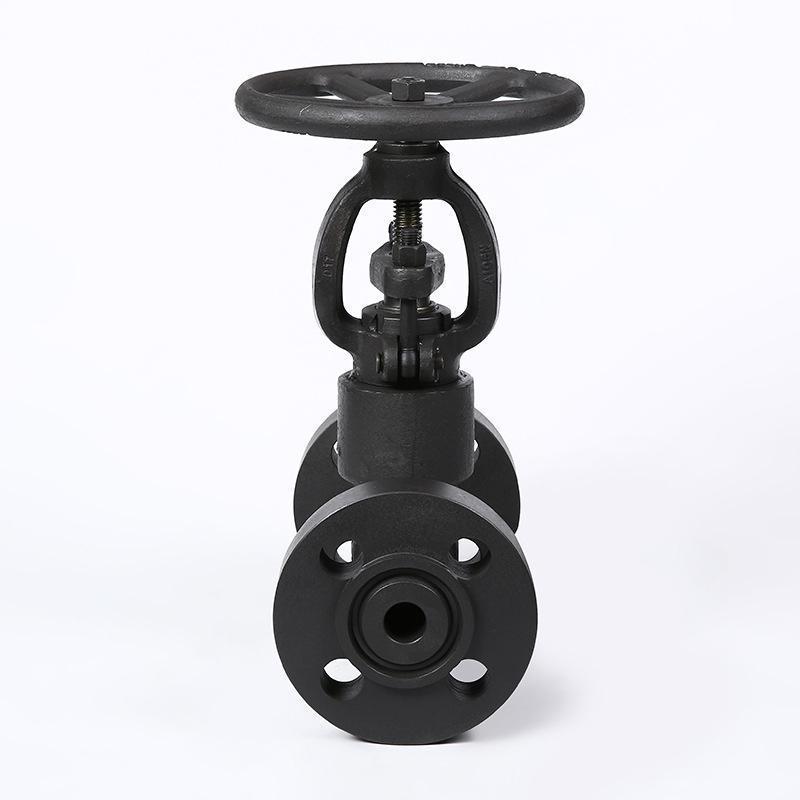

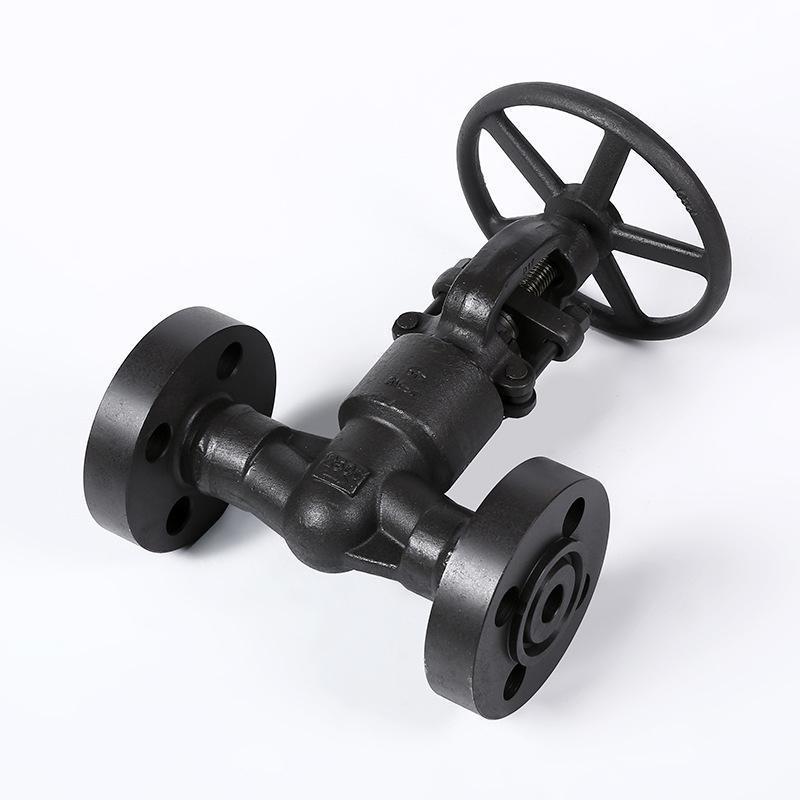

J41H American Standard Hard Seal Forged Steel Globe Valve Description:
Forged steel flanged globe valve series products are mainly used to cut off (or connect) pipeline media. It is suitable for nitric acid, acetic acid and other occasions in the chemical industry and other industries. This series of products are produced according to national standards, with advanced structure, technological performance, and various performance indicators have reached the advanced standard level.
Structural features of forged steel flanged globe valve
This type of valve adopts two sealing types: plane seal and conical surface seal, which can be used for medium requirements of different working conditions, with stable sealing performance and long service life. Turn the hand wheel counterclockwise to drive the valve stem to drive the valve disc and diaphragm to rise rapidly, opening the channel to allow the medium to pass smoothly.
Design and manufacturing standards:
1. Design and manufacture according to GB12235-89
2. The length of the structure is in accordance with GB12221-89
3. Flange size according to JB/G79-94
4. Valve inspection and test are in accordance with GB13927
Performance specification for forged steel flanged globe valve
| Model | Nominal pressure | Test Pressure | Working temperature (℃) | Applicable medium | ||
| Strength (water) (Mpa) | Seal (water) air (Mpa) | Low pressure sealed air (Mpa) | ||||
| J41W-16P | 1.6 | 2.4 | 1.8 | 0.6 | ≤200 | NITRIC ACID |
| J41W-25P | 2.5 | 3.8 | 2.8 | 0.6 | ≤200 | NITRIV ACID |
| ACETIC ACID | ||||||
| J41W-40P | 4.0 | 6.0 | 4.4 | 0.6 | ≤200 | |
| J41W-64P | 6.4 | 9.6 | 7.0 | 0.6 | ≤200 | Acetic acid |
Stable Operation / Thick Valve Body / Reliable Quality
Low noise and stable
Energy-saving energy
Running smoothly
Not easy to rust
Low failure rate
Machinery Seal
Ingenuity Craftsmanship, Excellent Quality, Years Of Experience
Not easy to burst, good sealing, not easy to leak
Nearly 20 years of experience in the valve industry, reliable quality
Smooth and beautiful surface, stable structure
Strong connection, not easy to loosen
OIL
CHEMICAL INDUSTRY
METALLURGY
MECHANICAL
ELECTRICITY
WATER SUPPLY
